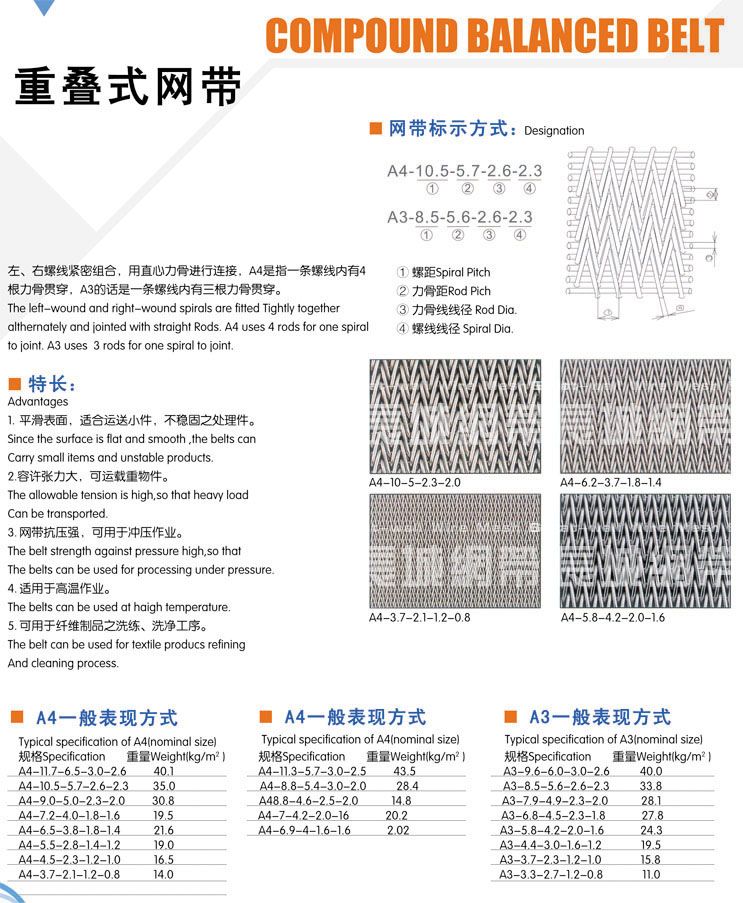

重疊式網帶又稱人字型網帶左、右螺線緊密組合，用直心力骨進行連接，A4是指一條螺線內有4根力骨貫穿，A3的話是一條螺線內有三根力骨貫穿。
　　The left-wound and right-wound spirals are fitted Tightly together althernately and jointed with straight Rods. A4 uses 4 rods for one spiral to joint. A3 uses 3 rods for one spiral to joint.

　　
　　Advantages
　　1.平滑表面，適合運送小件，不穩固之處理件。
　　Since the surface is flat and smooth ,the belts can
　　Carry small items and unstable products.
　　2.容許張力大，可運載重物件。
　　The allowable tension is high,so that heavy load
　　Can be transported.
　　3.網帶抗壓強，可用于沖壓作業。
　　The belt strength against pressure high,so that
　　The belts can be used for processing under pressure.
　　4.適用于高溫作業。
　　The belts can be used at haigh temperature.
　　5.可用于纖維制品之洗練、洗凈工序。
　　The belt can be used for textile producs refining
　　And cleaning process.

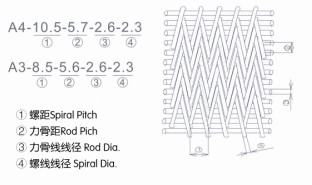

　　Typical specification of A4(nominal size)
　　規格Specification 重量Weight(kg/m2 ) 規格Specification 重量Weight(kg/m2 ) 規格Specification 重量Weight(kg/m2 )
　　A4-11.7-6.5-3.0-2.6 40.1 A4-11.3-5.7-3.0-2.5 43.5 A3-9.6-6.0-3.0-2.6 40.0
　　A4-10.5-5.7-2.6-2.3 35.0 A4-8.8-5.4-3.0-2.0 28.4 A3-8.5-5.6-2.6-2.3 33.8
　　A4-9.0-5.0-2.3-2.0 30.8 A48.8-4.6-2.5-2.0 14.8 A3-7.9-4.9-2.3-2.0 28.1
　　A4-7.2-4.0-1.8-1.6 19.5 A4-7-4.2-2.0-16 20.2 A3-6.8-4.5-2.3-1.8 27.8
　　A4-6.5-3.8-1.8-1.4 21.6 A4-6.9-4-1.6-1.6 2.02 A3-5.8-4.2-2.0-1.6 24.3
　　A4-5.5-2.8-1.4-1.2 19.0 A3-4.4-3.0-1.6-1.2 19.5
　　A4-4.5-2.3-1.2-1.0 16.5 A3-3.7-2.3-1.2-1.0 15.8
　　A4-3.7-2.1-1.2-0.8 14.0 A3-3.3-2.7-1.2-0.8 11.0
